How to Design Reinforcement for a Beam (Simple Explanation + Book References)
Designing reinforcement for a reinforced concrete (RC) beam follows a standard sequence used by structural engineers worldwide. Below is the step-by-step method, followed by reliable book references.
🔶 Step 1: Define Beam Loading & Support Conditions
Before designing steel reinforcement, you must know:
- Beam span (L)
- Type of support (Simply supported, continuous, cantilever)
- Dead load (DL)
- Live load (LL)
These loads help determine bending moment (M) and shear force (V).
🔶 Step 2: Select Concrete & Steel Grades
Common choices:
- Concrete: f’c = 20 MPa, 25 MPa, 30 MPa, 35 MPa
- Steel Grade: Fe415, Fe500
This affects the design strength.
🔶 Step 3: Calculate Bending Moment (M)
Using structural analysis:
- For simply supported beam with UDL:
M = wL² / 8
This moment determines the tension reinforcement required.
🔶 Step 7: Check Deflection & Serviceability
Ensure:
- Depth is enough
- Span/depth ratio meets IS/ACI limits
(Example: L/d ≤ 20 for simply supported beams)

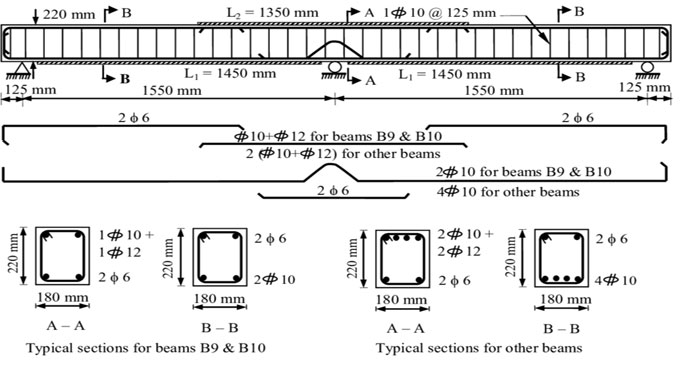

🔶 Step 8: Prepare Final Reinforcement Detailing
Every beam must include:
- Tension steel (bottom bars)
- Compression steel (if doubly reinforced)
- Stirrups (closed ties)
- Anchorage length (development length)
- Hooks & laps
- Curtailment length for bent-up bars
📚 Book References (Internationally Accepted)
You can safely cite these in your Facebook posts:
1️⃣ Reinforced Concrete Design – A.K. Jain (India)
Highly trusted for beam design using IS 456 code.
2️⃣ Reinforced Concrete Design – N. Krishna Raju (India)
Clear explanation of singly & doubly reinforced beam design.
3️⃣ Design of Reinforced Concrete – McCormac & Brown (USA – ACI Code)
Global reference based on American Concrete Institute (ACI 318).
4️⃣ Reinforced Concrete Design – W.H. Mosley, J.H. Bungey, Ray Hulse (UK)
Very popular textbook for beginners and practicing engineers.
5️⃣ Structural Concrete: Theory and Design – M. Nadim & Wang (USA)
Advanced but excellent for academics and practicing engineers.
🔵 Short Facebook Caption Version (Ready to Post)
“How do engineers design reinforcement for beams?
First, we analyze the loads, select material strength, calculate bending moment & shear, determine steel area, and finalize the detailing using standards like IS 456 or ACI 318.
Proper design = safe, strong, and durable structures. 🏗️📘
(References: A.K. Jain, Krishna Raju, McCormac & Brown)”
