Estimating the quantity of steel required for construction projects is a crucial step in planning and budgeting. Accurate estimation ensures that procurement is efficient, costs are controlled, and there is minimal wastage. This guide will walk you through the process of estimating steel quantity for various structural elements in construction.
Why is Estimating Steel Quantity Important?
- Budgeting: Helps in accurate financial planning and cost control.
- Procurement: Ensures timely purchase of materials, avoiding project delays.
- Resource Management: Prevents wastage by ordering the right amount.
- Project Planning: Assists in scheduling and logistics.
Common Structural Elements Requiring Steel
- Beams
- Columns
- Slabs
- Footings
- Reinforced concrete walls
- Staircases
Step-by-Step Guide to Estimating Steel Quantity
1. Understand the Structural Drawings and Design
Carefully study the structural drawings and specifications provided by the structural engineer. These documents contain the sizes, lengths, and types of steel bars (rebars) required.
2. Calculate Steel for Different Elements
a. Estimating Steel for Beams and Columns
- Identify the bar diameters and numbers specified for the main reinforcement and stirrups.
- Measure the length of each bar from the drawings.
- Calculate the weight of steel using the formula:
Weight (kg) = Length (m) × Cross-sectional area (cm²) × Density of steel (7.85 g/cm³)Alternatively, use the simplified formula:

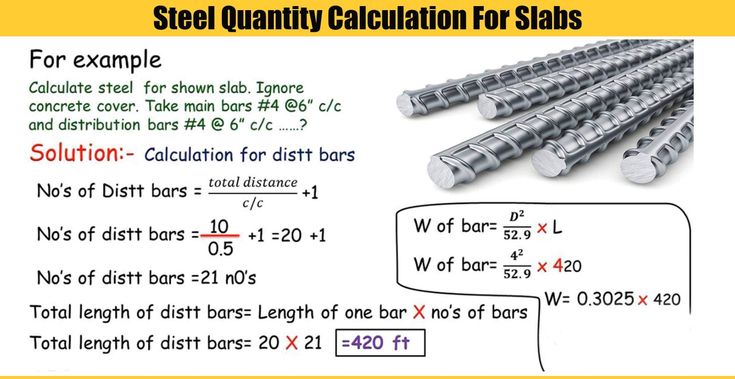

Weight of steel bar (kg) = 0.006165 × Diameter² (mm) × Length (m)b. Estimating Steel for Slabs
- Determine the spacing and diameter of the reinforcement mesh.
- Calculate the total length of steel required per layer.
- Multiply by the number of layers specified.
- Use the weight formula as above.
c. Estimating Steel for Footings and Foundations
- Similar to beams and columns, identify the reinforcement details.
- Calculate the weight of main bars and distribution bars separately.
3. Sum Up the Quantities
Add the steel quantities for all structural elements to get the total steel requirement for the project.
4. Add Wastage Allowance
Typically, add 2% to 5% extra steel to account for cutting, bending, and wastage during construction.
Example Calculation
Suppose a beam requires 4 bars of 12 mm diameter, each 6 meters long.
- Calculate weight of one 12 mm bar:
Weight = 0.006165 × 12² × 6 = 0.006165 × 144 × 6 = 5.33 kg- Total weight for 4 bars:
5.33 × 4 = 21.32 kgAdd stirrups weight as specified and sum all for total beam steel quantity.
Tips for Accurate Estimation
- Always double-check measurements on drawings.
- Use software tools like AutoCAD, Revit, or specialized structural estimation software for complex projects.
- Consult with structural engineers if in doubt.
- Keep records of past estimations for reference.
Conclusion
Estimating steel quantity accurately is vital for the success of any construction project. By understanding the structural design, using the correct formulas, and accounting for wastage, you can ensure efficient resource use and cost savings. Whether you are a contractor, engineer, or student, mastering this skill will enhance your project planning and execution capabilities.
For more construction tips and detailed guides, stay tuned to our blog!
